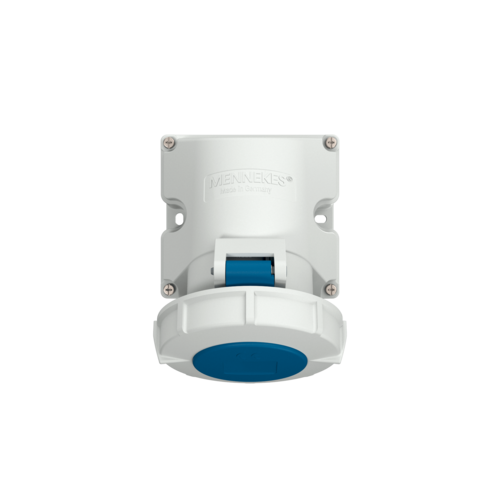

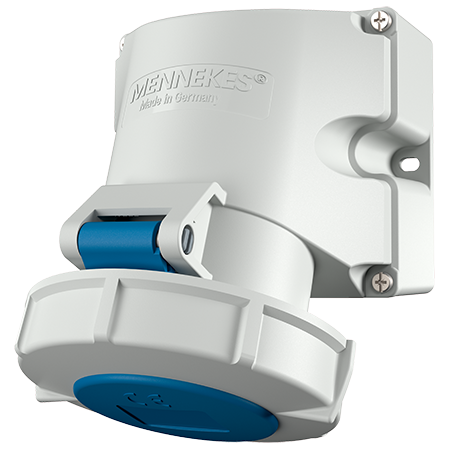

MENNEKES Wall mounted receptacle 9371
MENNEKES Wall mounted receptacle 9371 images3d

Wall mounted receptacle 9371

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly resistant to chemicals
  • with 2 external fixing points
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.9371
  • EAN4015394280637
  • Std. Pack. 5

Technical specifications

Wall mounted receptacle 9371

Ampere 32 A
Poles 4 p
Voltage 230 V
Clock position 9 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 529 g
Certifications EAC

Datasheets & Downloads

Wall mounted receptacle 9371

Product infoWall mounted receptacle 9371 PDF, 204 KB
Dimensional drawing portraitWall mounted receptacle 9371 PNG, 133 KB
Dimensional drawing landscape formatWall mounted receptacle 9371 PNG, 135 KB

Directives

Wall mounted receptacle 9371

REACh
RoHS

Appropriate accessories

Wall mounted receptacle 9371

MENNEKES Weather shield 15542

Weather shield

Part no. 15542

made from stainless steel (material 1.4301), with side blinds, for mounting on column, dimensions (H x W x D): 226 x 155 x 131/52 mm

more
