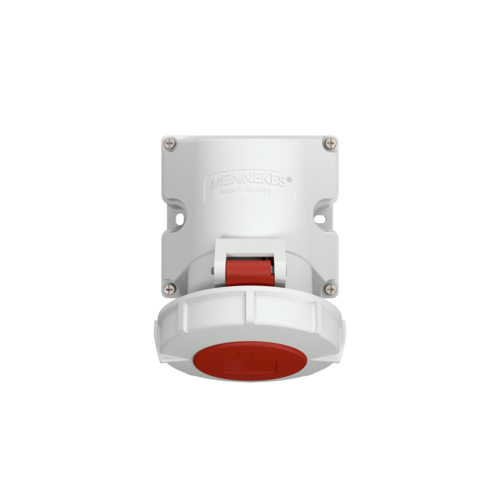

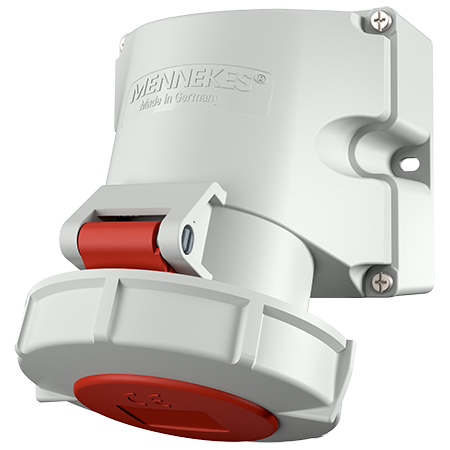

MENNEKES Wall mounted receptacle 9382
MENNEKES Wall mounted receptacle 9382 images3d

Wall mounted receptacle 9382

Ampere 16 A 32 A
Poles
Voltage
Clock position
  • screw terminals
  • highly resistant to chemicals
  • with 2 external fixing points
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.9382
  • EAN4015394281764
  • Std. Pack. 5
Resistant to chemicals

Resistant to chemicals

Increased chemical resistance

Read more

Technical specifications

Wall mounted receptacle 9382

Ampere 32 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Enclosure material Plastic, high resistance to chemicals / AMELAN
Weight 566 g
Certifications VDE

Datasheets & Downloads

Wall mounted receptacle 9382

Product infoWall mounted receptacle 9382 PDF, 202 KB
Manufacturer‘s declarationWall mounted receptacle 9382 PDF, 38 KB
Dimensional drawing portraitWall mounted receptacle 9382 PNG, 133 KB
Dimensional drawing landscape formatWall mounted receptacle 9382 PNG, 135 KB

Directives

Wall mounted receptacle 9382

REACh
RoHS
