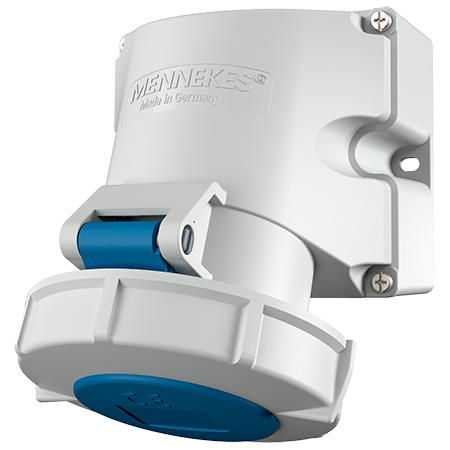

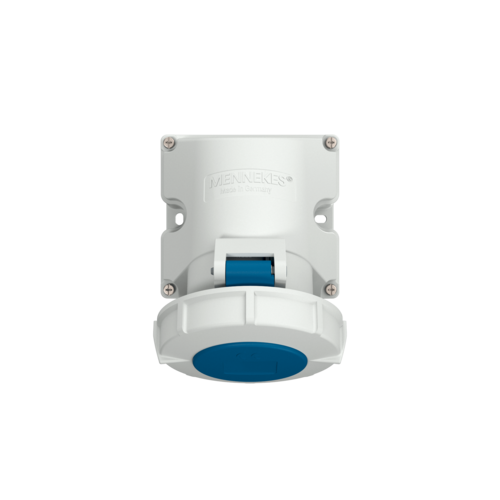

Wall mounted receptacle 9590
Voltage
Clock position
- screw terminals
- highly resistant to chemicals
- highly heat resistant contact carrier
- nickel plated contacts
- two external fixing points
- enclosure can be turned 180°
- receptacles are designed for adding an auxiliary contact switch
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Wall mounted receptacle 9590
| Ampere | 32 A |
|---|---|
| Poles | 7 p |
| Voltage | 230 V |
| Clock position | 9 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
highly heat resistant contact carrier nickel plated contacts |
| Protection type | IP67 |
| Enclosure material | Plastic, high resistance to chemicals / AMELAN |
| Weight | 620 g |
| Certifications | EAC |
Frequently asked questions about the product
What do I use a 7-pin device for?
7-pin plugs and sockets can be used, for example, to regulate, control and monitor devices in industry, agriculture and the trade. To this end, see also page 76-78 of our Industrial plugs and sockets catalog. Our 7-pin plugs and sockets can be found here.
