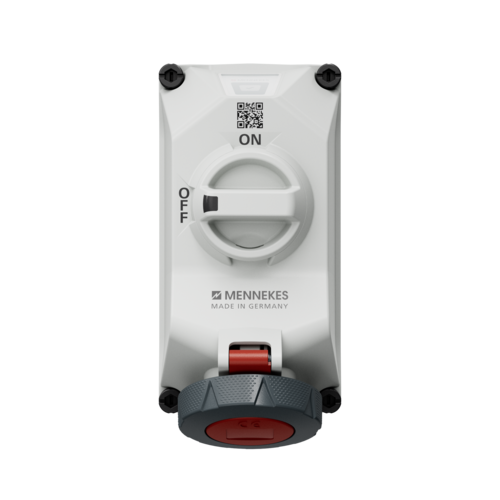

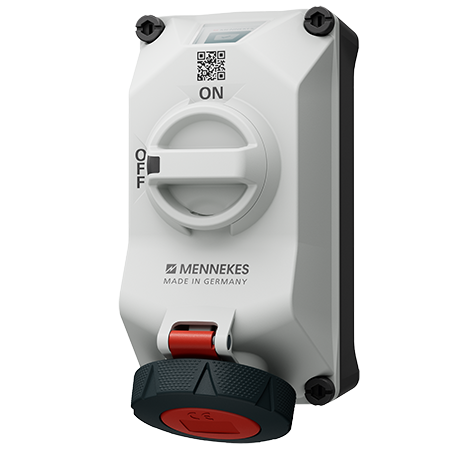

MENNEKES Wall mounted receptacle DUOi 5612506N

Wall mounted receptacle DUOi 5612506N

Twice the protection - our DUOi wall mounted receptacle impresses with its particularly secure DUO locking mechanism. This prevents the plug from being pulled out under load, and when switched off,...Read more
Poles
Voltage
Clock position
  • screw terminals
  • LED voltage indicator
  • pre-wired for installation
  • X-CONTACT
  • switched
  • mechanical DUO-interlock
  • switched N conductor
  • receptacles can be padlocked
  • sealed against dust, temporary submersion and high pressure cleaning
  • Part no.5612506N
  • EAN4015394303855
  • Std. Pack. 1 Qty.
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
Standard screw terminals

Screw terminals

Standard screw terminals

X-CONTACT®

X-CONTACT®

Innovative contact sleeve technology

Technical specifications

Wall mounted receptacle DUOi 5612506N

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact X-CONTACT
Protection type IP67 / IP69
Enclosure material Plastic
Weight 1340 g
