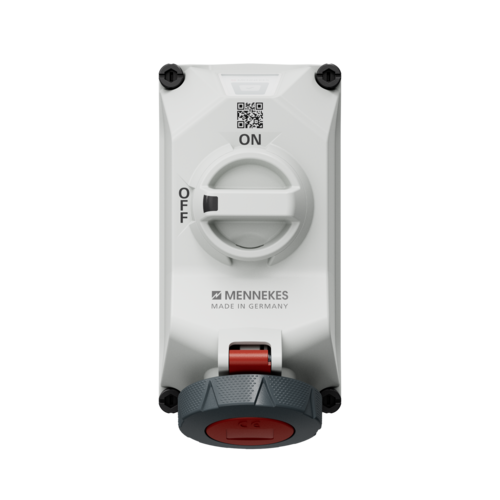

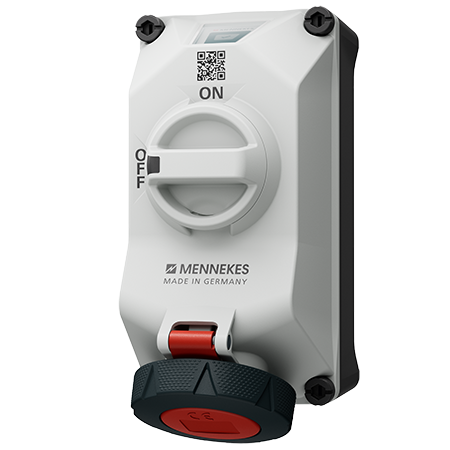

Wall mounted receptacle DUOi R 5712506H
Twice the protection - our DUOi wall mounted receptacle impresses with its particularly secure DUO locking mechanism. This prevents the plug from being pulled out under load, and when switched off, the DUOi can be additionally secured with a Lockout-Tagout padlock. The DUOi wall mounted receptacle with IP67 / IP69 protection is protected against temporary submersion and high pressure cleaning. The convenient LED lights up green when switched on and goes out in the event of a power flow fault.
Voltage
Clock position
- screw terminals
- LED voltage indicator
- pre-wired for installation
- X-CONTACT
- switched
- mechanical DUO-interlock
- highly heat resistant contact carrier
- nickel plated contacts
- 3 pole switch with auxiliary contact switch 1 NC and 1 NO
- receptacles can be padlocked
- sealed against dust, temporary submersion and high pressure cleaning
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
- Please enter a list name
- The list name already exists
- Please enter a valid list name
Technical specifications
Wall mounted receptacle DUOi R 5712506H
| Ampere | 16 A |
|---|---|
| Poles | 5 p |
| Voltage | 400 V |
| Clock position | 6 h |
| Hertz | 50-60 Hz |
| Connection technology | Screw terminals |
| Contact |
nickel plated contacts X-CONTACT highly heat resistant contact carrier |
| Protection type | IP67 / IP69 |
| Enclosure material | Plastic |
| Weight | 1310 g |
