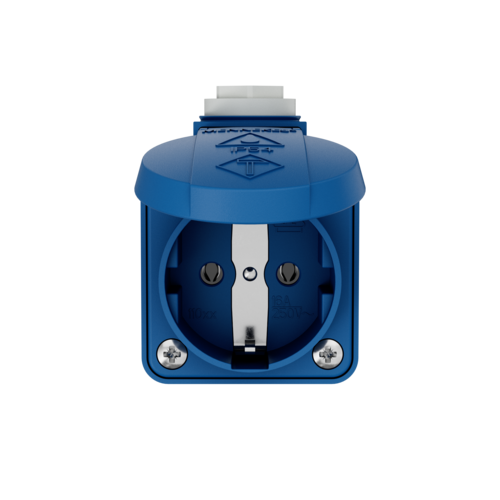

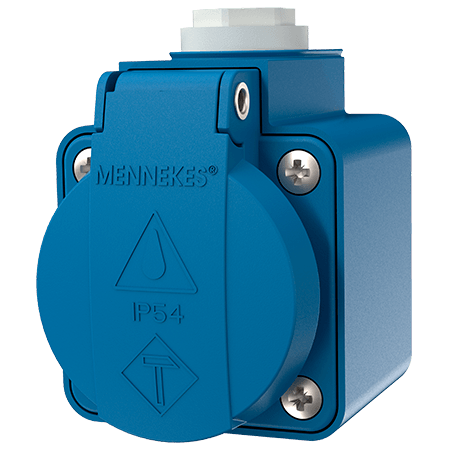

MENNEKES Wall mounted receptacle SCHUKO® 10082
MENNEKES Wall mounted receptacle SCHUKO® 10082 images3d

Wall mounted receptacle SCHUKO® 10082

Ampere 16 A
Poles
Voltage
  • with hinged lid
  • 3 plug-in terminals as connecting terminals for 1.5 – 2.5 mm²
  • cable entry M 20 x 1.5 at top and blind entry (for cut out) M 20 x 1.5 at bottom
  • can be arranged in a row using slot and slide
  • Part no.10082
  • EAN4015394188117
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Wall mounted receptacle SCHUKO® 10082

Ampere 16 A
Poles 2 p+E
Voltage 230 V
Connection technology Plug-in terminals
Contact standard
Protection type IP44
Shutter No
Weight 60 g
Certifications EAC

Directives

Wall mounted receptacle SCHUKO® 10082
