MENNEKES Wall mounted receptacle with TwinCONTACT 1726
MENNEKES Wall mounted receptacle with TwinCONTACT 1726 images3d

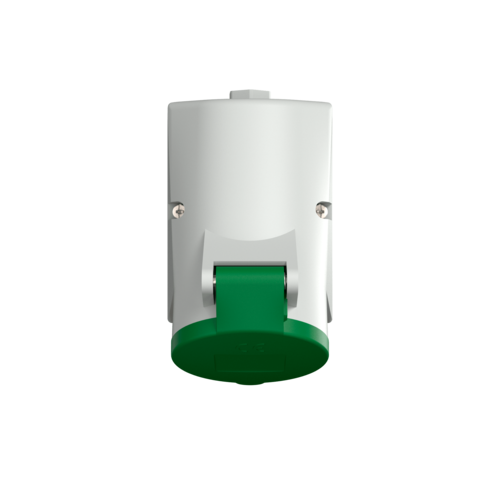

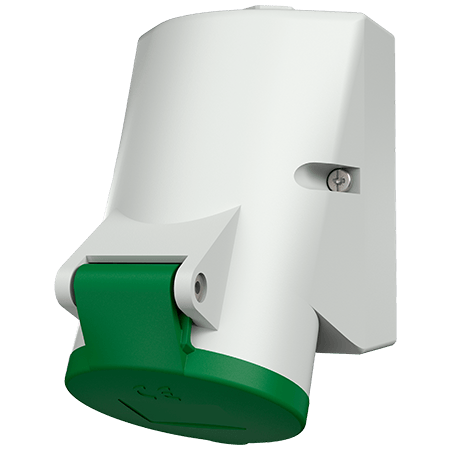

Wall mounted receptacle with TwinCONTACT 1726

The compact CEE wall mounted receptacle for solutions in the sector of 16 A.

Ampere 16 A
Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • internal fixing
  • 4 p and 5 p receptacles the enclosure can be turned 180°
  • Part no.1726
  • EAN4015394213727
  • Std. Pack. 10

Technical specifications

Wall mounted receptacle with TwinCONTACT 1726

Ampere 16 A
Poles 4 p
Voltage 50-500 V
Clock position 10 h
Hertz 100-300 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP44
Weight 230 g
Certifications VDE

Datasheets & Downloads

Wall mounted receptacle with TwinCONTACT 1726

Product infoWall mounted receptacle with TwinCONTACT 1726 PDF, 169 KB
Dimensional drawing portraitWall mounted receptacle with TwinCONTACT 1726 PNG, 96 KB
Dimensional drawing landscape formatWall mounted receptacle with TwinCONTACT 1726 PNG, 97 KB

Directives

Wall mounted receptacle with TwinCONTACT 1726

REACh
RoHS
