MENNEKES Wall mounted receptacle with TwinCONTACT 1727
MENNEKES Wall mounted receptacle with TwinCONTACT 1727 images3d

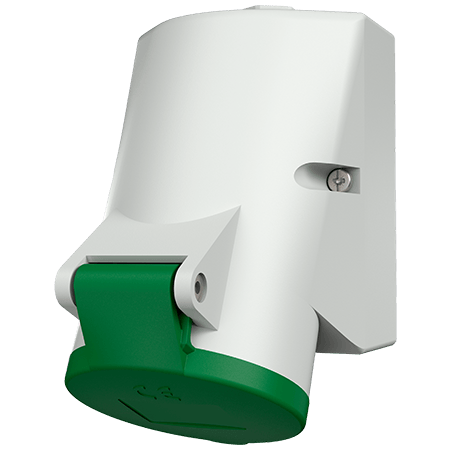

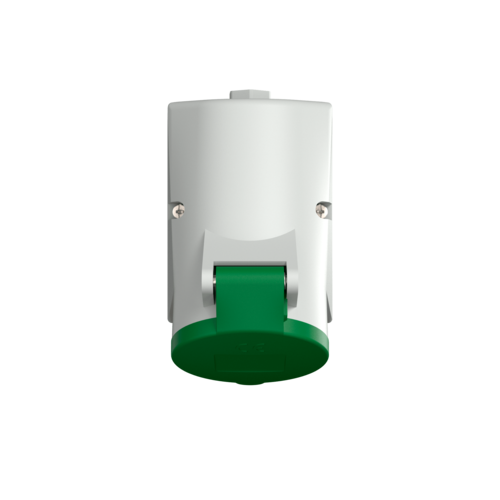

Wall mounted receptacle with TwinCONTACT 1727

The compact CEE wall mounted receptacle for solutions in the sector of 16 A.

Ampere 16 A
Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • internal fixing
  • 4 p and 5 p receptacles the enclosure can be turned 180°
  • Part no.1727
  • EAN4015394213734
  • Std. Pack. 10
TwinCONTACT

Screwless - TwinCONTACT

Screwless spring terminals

Read more

Technical specifications

Wall mounted receptacle with TwinCONTACT 1727

Ampere 16 A
Poles 4 p
Voltage 50-500 V
Clock position 2 h
Hertz 300-500 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP44
Weight 220 g
Certifications EAC

Datasheets & Downloads

Wall mounted receptacle with TwinCONTACT 1727

Product infoWall mounted receptacle with TwinCONTACT 1727 PDF, 169 KB
Dimensional drawing portraitWall mounted receptacle with TwinCONTACT 1727 PNG, 96 KB
Dimensional drawing landscape formatWall mounted receptacle with TwinCONTACT 1727 PNG, 97 KB

Directives

Wall mounted receptacle with TwinCONTACT 1727

REACh
RoHS
