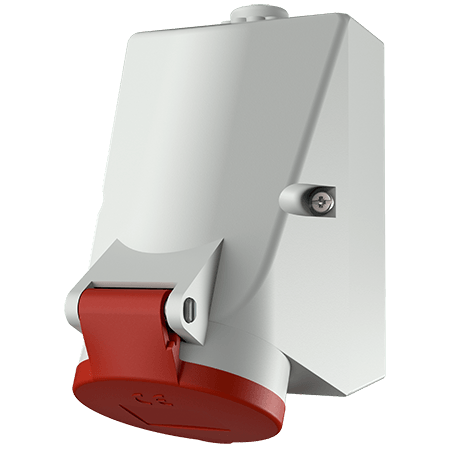

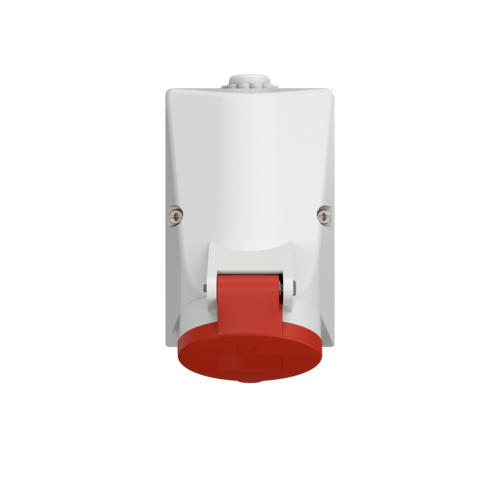

MENNEKES Wall mounted receptacle with TwinCONTACT 419
MENNEKES Wall mounted receptacle with TwinCONTACT 419 images3d

Wall mounted receptacle with TwinCONTACT 419

The universal CEE receptacle for trade and industry with freely selectable connection direction.

Poles
Voltage
Clock position
  • screwless spring terminals
  • suitable for through wiring
  • internal fixing
  • enclosure base can be turned 180°
  • receptacles are designed for adding an auxiliary contact switch
  • Part no.419
  • EAN4015394206125
  • Std. Pack. 10
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name
TwinCONTACT

Screwless - TwinCONTACT

Screwless spring terminals

Technical specifications

Wall mounted receptacle with TwinCONTACT 419

Ampere 16 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screwless - TwinCONTACT
Contact standard
Protection type IP44
Weight 285 g
Certifications VDE

Directives

Wall mounted receptacle with TwinCONTACT 419

Appropriate accessories

Wall mounted receptacle with TwinCONTACT 419

MENNEKES Auxiliary contact block 41000

Auxiliary contact block

Part no. 41000

for receptacles and panel mounted receptacles 16 A and 32 A of product groups 1018, 1019, 1041, 1049, 1132, 1141, 1146 and 1148 as well as 32 A of product groups 1044, 1048, 1133 and 1135, funktion: change-over contact = NC/NO, connected load: 16 A (inductive 4 A), 250 V AC
