Plugs and sockets for shipyards, ports and ships

Shipshape for energy distribution: for construction work in shipyards and loading and unloading of containers and merchandise in ports, equipment and machine rooms, reefers, storage areas, and galleys. All of these activities require a safe, reliable power supply with sturdy, robust plugs and sockets. Whether you're a production or maintenance manager or planner, you can count on getting the right solution from us to meet your needs.

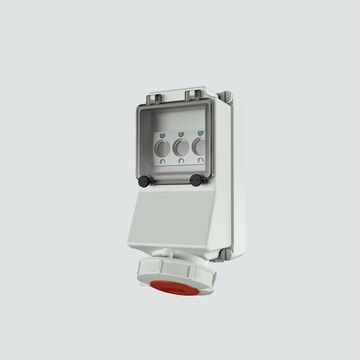

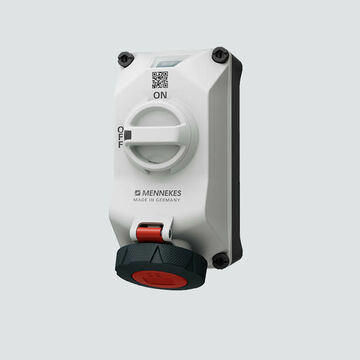

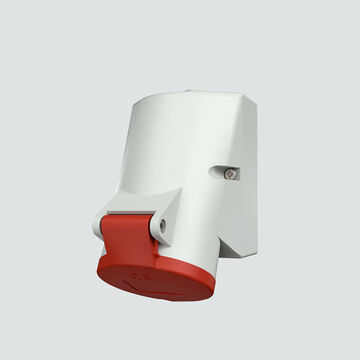

The MENNEKES portfolio of wall mounted receptacles for shipyards and ports includes conventional models, versions protected by fuse sockets or circuit breakers, and our switchable and mechanically lockable DUO range. All of these products' contact screws are easy to access from the front. Our X-CONTACT contact sleeve technology can be integrated on request. This also makes it especially easy for you to insert and withdraw plugs at high currents - while applying up to 50% less force! The receptacles are made of premium-quality plastic. If wished, you can also get these products made of special plastic with highly heat resistant contact carrier and nickel-plated contacts.

SCHUKO® wall mounted receptacles with 16 A are especially well-suited for ships. They feature IP 68 ingress protection and are therefore impervious to pressurized water. All contact screws can be practically accessed from the front, and the sockets are additionally protected by hinged bayonet covers.

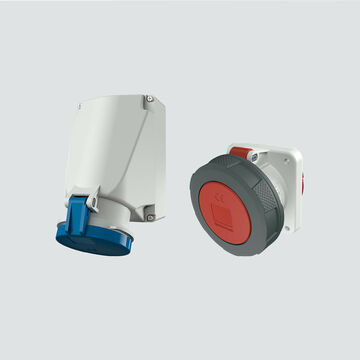

Especially for powering reefers, besides various wall mounted receptacles DUO with 32 A and AMAXX receptacle combinations we also offer the following products: our wall mounted receptacle 9562, panel mounted receptacle 2123 A, and panel mounted inlet 2692, all of which feature nickel-plated contacts, highly heat resistant contact carrier, and time-saving screw-type terminations. The wall mounted receptacle is made of special plastic that provides protection from aggressive substances, and the bottom part of the housing can be rotated through 180°. The panel mounted receptacle receives plugs in a straight line, and the panel mounted inlet has a protective hinged cover.

The AM-TOP plugs and sockets from MENNEKES with 16 to 32 A feature a robust single-piece housing that, together with a sealed thread, ensures safe, secure handling, also in moist or wet conditions; special screwed contact terminations also ensure quick and easy installation. AM-TOP plugs and connectors provide IP 67 ingress protection: ideal for keeping out dust and water.

Our PowerTOP Xtra plugs and sockets help you flexibly and safely distribute power at shipyards. Ergonomically optimised design, nubbed grip zones, rubberised nubbed cable glands, an easy-open hinged cover, and locking sliders combine to ensure that plugs and connectors are easy to grip, lie in the hand perfectly without slipping, even when moist or wet, and have a lifetime of several thousand mating cycles.

These plugs and sockets are made of robust, long-lived materials and are available with IP 44, 54, and 67 ingress protection. This means that they are optimally protected from dust and water. The PowerTOP Xtra connectors for 63 A and 125 A feature highly heat resistant contact carrier and are optionally available with nickel-plated contacts. The plugs also have nickel-plated contacts. The five-pole plugs and sockets for 16 A and 32 A are also available in a PowerTOP Xtra R version with the same robust features. This ideally protects them from aggressive substances. All of them boast our strength-saving X-CONTACT contact sleeve technology. Ingeniously designed connections make them quick and easy to install using a minimum of tools.
