MENNEKES Panel mounted inlet TM 20463

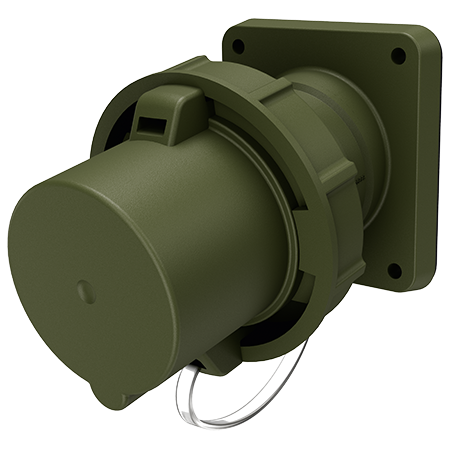

Panel mounted inlet TM 20463

Poles
Voltage
Clock position
  • screw terminals
  • highly heat resistant contact carrier
  • nickel plated contacts
  • with protective cap
  • (form BP)
  • Part no.20463
  • EAN4015394038887
  • Std. Pack. 5
You can manage our products in various lists in the shopping list / shopping basket area.
Please give the new list a name
  • Please enter a list name
  • The list name already exists
  • Please enter a valid list name

Technical specifications

Panel mounted inlet TM 20463

Ampere 63 A
Poles 5 p
Voltage 400 V
Clock position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type IP67
Weight 721 g
Certifications VDE

Directives

Panel mounted inlet TM 20463

Appropriate accessories

Panel mounted inlet TM 20463

MENNEKES Protective cover TM 24895

Protective cover TM

Part no. 24895

for watertight plugs and inlets, (form G)

MENNEKES Protective cover 40787

Protective cover

Part no. 40787

for watertight plugs, wall mounted and panel mounted inlets 63 A, 3 p - 5 p
